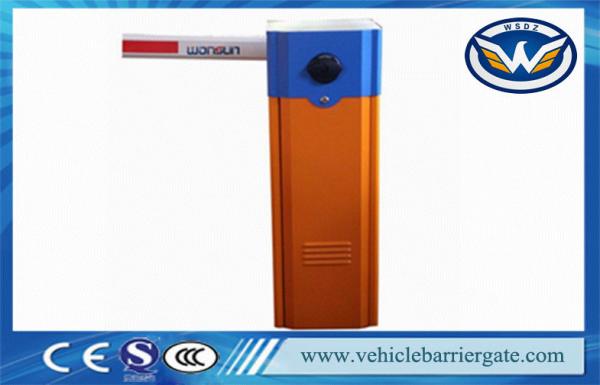

Photocell OEM Road Safety Car Park Barriers Pedestrian Barrier Gate
Car Park Barriers Feature
1. Steady function, sensitive reaction, low noise
2. The case shell is made of thickened steel which is shaped by 13
process flow. Without fading, waterproofing is not rusty, or
durable.
3. High-sensitive limit switch, the pole can be instantly turned on
and off accurate location.
4. The control system adopts hi-tech digital chip technology.
5. The anti-collision function. Protecting the passenger
6. The inductive function, of the digital vehicle detector
7. The movements adopt the most steady running mode –non-constant
speed mode. Or the variable speed excogitation. (Slow – quick –
slow ) This function makes the operation steady and prolongs the
working life.
Car Park Barriers Model Selection and Differences
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well. Our thinking is beyond the short-term. We are conceiving,
designing, and creating high-tech solutions that are as advanced
and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative, that will improve your performance and enhance your
skills; and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Car Park Barriers Specifications
Car Park Barriers Model | WST1211 |
Car Park Barriers Working Temperature | -40℃～+75℃ |
Car Park Barriers Voltage | 220V±10%, 110V±10%, 50/60HZ |
Car Park Barriers Rated power | 80W |
Car Park Barriers Relative humidity | ≤90% |
Car Park Barriers Remote control distance | ≥30m |
Car Park Barriers Net weight | 48kgs |
Car Park Barriers Speed | 1S,1.8S,3S, 6S |
Car Park Barriers Max boom length | 6 meters |
Car Park Barriers Motor Rotational speed | 1400rmp |
Car Park Barriers Protection Degree | IP44 |
Car Park Barriers Communication with customers
1) Q: Connected power and pressed the open/close button but the
traffic barrier gate no action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the
control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the traffic
barrier gate will move but even when it is in the right position,
the motor still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The motor running but the traffic barrier gate arm is not in
action?
A | Reason | Solution |
1 | Car Park Barriers arm at 45° position where is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or
vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, traffic barrier gate arm cannot reach
the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the Car Park Barriers door and unlock the clutch to check when
the arm is at 90° vertical position if the master rod covers slave one; when the arm
is at 180° horizontal position if the master rod and slave one are in the
same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when the arm at 90° vertical and 180° horizontal position |
