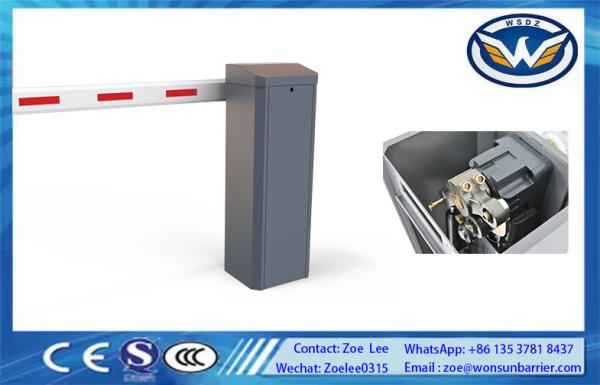

DC Brushless Motor Parking Barrier Gate Speed and Direction
Adjustable
Product Description

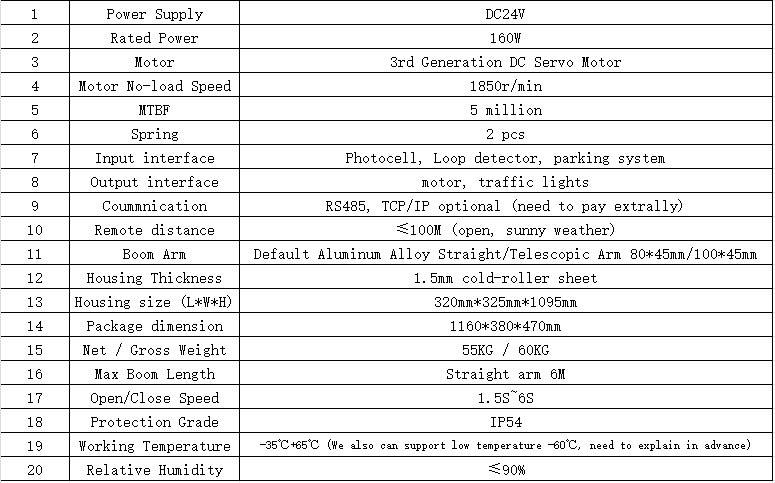

Parameters:
The DZ-830 barrier gate has several notable advantages:
Firstly, its speed can be adjusted according to specific
requirements.
Secondly, it is equipped with a bi-directional main shaft, allowing
it to be set either to the LEFT or RIGHT direction as needed.
Thirdly, the utilization of Hall limit switch means there's no
necessity for further adjustments.
Moreover, the motor of this barrier gate won't overheat during
operation, ensuring stable and reliable performance.
It also boasts an impressive lifetime that can reach up to 5
million times of usage.
For arms with a size of 80*45mm, there is an arm swing out function
available.
There are 10 outputs provided for loop detector anti-collision
purposes, enhancing its safety features.
It supports RS485 communication input, enabling better connectivity
and control.
In addition, it has an automatic arm lift function in case of power
failure, though it requires the addition of a power storage module.
The DZ-830 barrier gate is quite popular and enjoys good sales both
in the domestic and international markets.
It showcases a unique cover design and is available in multiple
colors including yellow, gray, and rose gold. Both sides of the
gate are designed for effective heat dissipation. The backside
features a non-welding handle design that is resistant to
deformation and rusting.
It is equipped with a waterproof ring device, which not only makes
it more durable but also gives it a longer lifespan and higher
quality compared to similar products on the market.

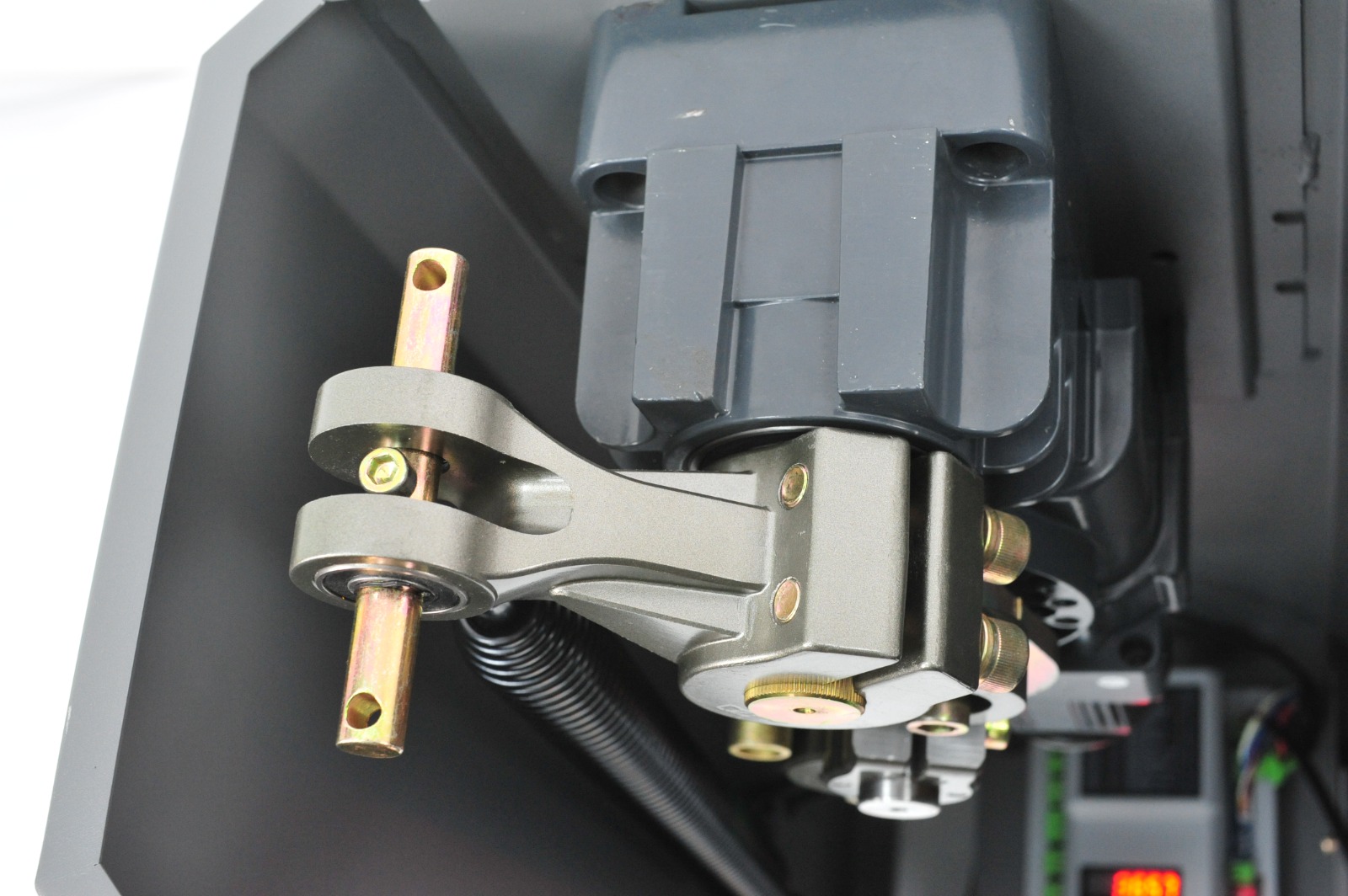

Inside the gate, there is a two-stage variable speed reducer and a
third-generation DC brushless motor with a rated power of 160W. It
adopts a side-loading mode that is simple and highly integrated.
The three-link is made of precision-cast steel and can be matched
with two tension springs. There is also a patented anti-skid
device.
The direction of the arm can be easily changed, and when the power
is off, the arm can be lifted manually.
The power supply is custom-made by us, and the control board is
independently developed by our team. Imported chips are used in the
control board, along with independent algorithms, endowing it with
powerful functions.
